Rotary Switch Boots

Rotary Switch Boots

Rotary Switch Seals

Rotary Switch Seals

Rotary Switches need extra protection because of their particular designץ It consists of a rotor spindle with a ‘spoke’ protruding from it. There’s also an array of terminals arranged in a circular manner around the switch; these function to make contact with the ‘spoke’ via electric circuits linked to the rotor. These sensitive switches need extra care and protection to ensure that they keep in proper working order, reducing the likelihood of equipment mal-function. ZaGO Switch Boots provide this extra level of protection and insurance keeping your equipment from failing.

Our switch boots are crafted from a single piece design to perform well under the most severe environmental conditions, providing full protection against exposure to harsh elements such as water, oil, sand, dust, dirt, humidity, moisture, precipitation and other contaminants. Technologies that benefit from our switch boots include aerospace, automotive, computer and electronic equipment and alternative energy producers. Our switch boots are ingress rated IP68.

Rotary Switch Seals Options

Click on each of the bushing thread options below to see the available products:

+1/4-32 UNEF-2B
Image Part # Bushing Thread A – Hex/Dia T – I.D. H – Height Information
RH 800 Rotary Switch Cover RH 800 1/4-32 UNEF-2B 0.375 H 0.125 0.230 More info
RH 802 Rotary Switch Cover RH 802 1/4-32 UNEF -2B 0.375 H 0.094 0.230 More info
+3/8-32 UNEF-2B
Image Part # Bushing Thread A – Hex/Dia T – I.D. H – Height Information
RH 801 Rotary Switch Cover RH 801 3/8-32 UNEF-2B 0.500 H 0.250 0.245 More info
RH802H Rotary Switch Boot RH 802H 3/8-32 UNEF 2B 0.500 H 0.312 0.245 More info
+M10 X 0.75
Image Part # Bushing Thread A – Hex/Dia T – I.D. H – Height Information
RH804 Rotary Switch Boot RH 804 M10 X 0.75 0.500 H 0.250 0.245 More info

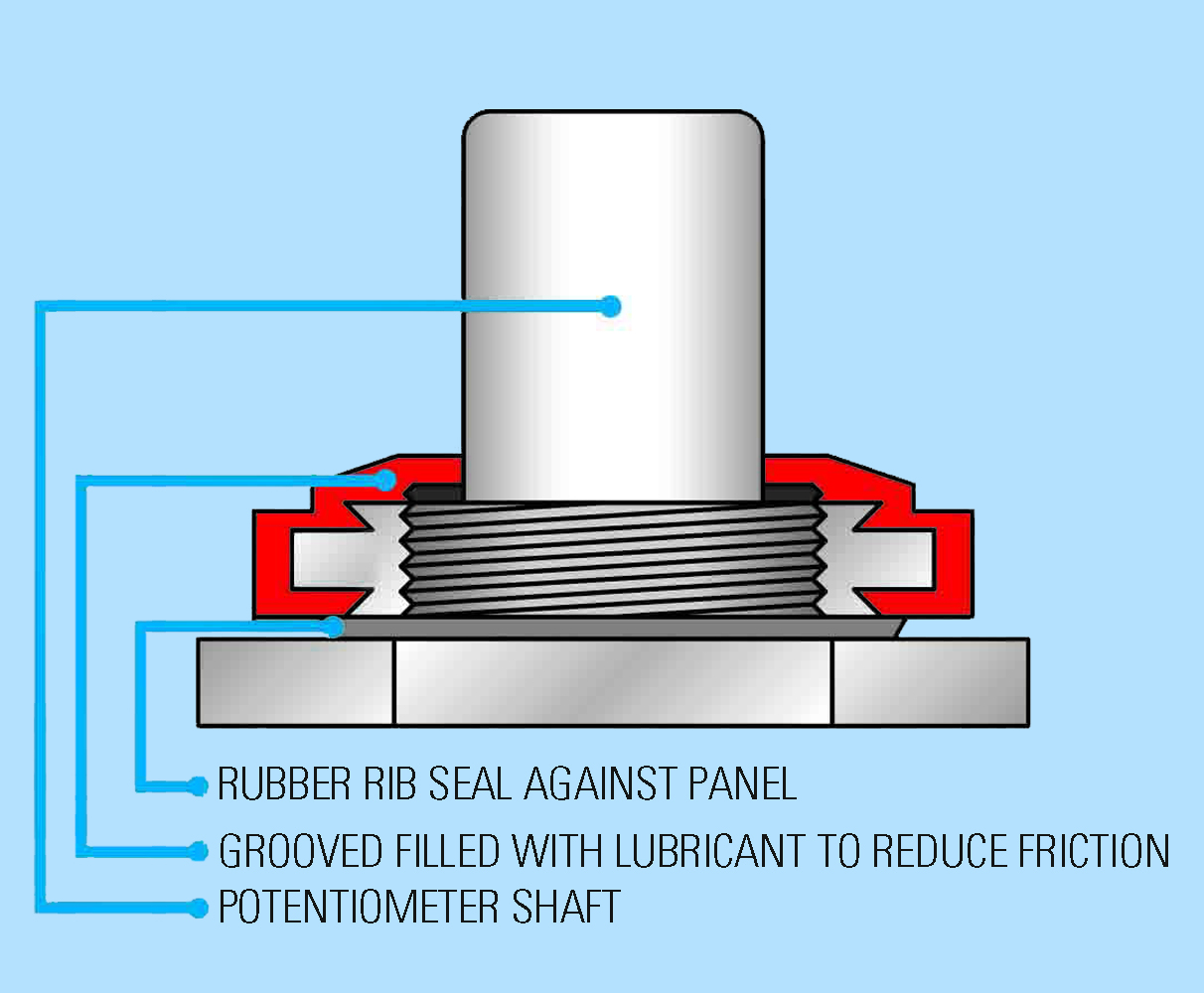

Rotary Switch Boot Specifications

Rotary Switch Seal Specifications Diagram

Rotary Switch Seal Specifications Diagram
