Push Button Switch Boots

Push-Button Switch Boots

Push Button Switch Seals

Push Button Switch Seals

Push Button Switches need protection against a number of hazardous elements. Our Push Button Switch Boots have been designed specifically to do that job. Push Buttons come in a variety of sizes, specifications, colors and legends depending on the industry and work they are used in. These switch boots cover all these varieties and work perfectly well in tandem with all sorts of push buttons.

All our boot products are manufactured to the strictest quality levels providing the extra assurance that equipment will not fail during operation. These products can be manufactured to fit any sized switch and not hinder its performance in any way. These switch boots protect the push button switches from environmental elements such as dirt, dust, wind damage as well as rain and salt water, essentially safeguarding against rust damage and grease build up among other things. Ingress rated IP68, our switch boots work perfectly well in a variety of industrial settings.

Push-Button Switch Seals Options

Click on each of the bushing thread options below to see the available products:

+1/2-32 UNS-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH703 Push Button Switch Boots PH 703 1/2-32 UNS-2B 0.300 0.625 H 0.390 0.565 More info
PH703W Push Button Switch Boot PH 703W 1/2-32 UNS-2B 0.300 0.650 H 0.390 0.565 More info
PH708 Push Button Switch Boot PH 708 1/2-32 UNS-2B 0.205 0.625 H 0.390 0.570 More info
PH732 Push Button Switch Boot PH 732 1/2-32 UNS-2B 0.480 0.625 H 0.420 0.750 More info
+1/4-32 UNEF-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH706 Push Button Switch Boot PH 706 1/4-32 UNEF-2B 0.180 0.375 H 0.180 0.320 More info
+1/4-40 UNS-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH707 Push Button Switch Boot PH 707 1/4-40 UNS-2B 0.180 0.375 H 0.180 0.320 More info
PH719 Push Button Switch Boot PH 719 1/4-40 UNS-2B 0.141 0.375 H 0.188 0.313 More info
+15/32-32 UNS-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
OP715 Push Button Switch Boot OP 715 15/32-32 UNS-2B N/A 0.625 H 0.205 0.550 More info
PH700 Push Button Switch Cover PH 700 15/32-32 UNS-2B 0.300 0.625 H 0.390 0.570 More info
PH702 Push Button Switch Boot PH 702 15/32-32 UNS-2B 0.480 0.625 H 0.390 0.750 More info
PH702M Push Button Switch Boot PH 702M 15/32-32 UNS-2B 0.480 0.625 H 0.420 0.750 More info
PH711 Push Button Switch Boot PH 711 15/32-32 UNS-2B 0.530 0.625 H 0.420 0.815 More info
+3/8-24 UNF-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH724 Push Button Switch Boot PH 724 3/8-24 UNF-2B 0.550 0.500 H 0.330 0.695 More info
+3/8-27 UNS-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PR727 Push Button Switch Boot PR 727 3/8-27 UNS-2B 0.325 0.625 D 0.310 0.616 More info
+3/8-32 UNEF-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PR728CL Push Button Switch Boot PR 728CL 3/8-32 UNEF-2B 0.325 0.625 D 0.310 0.616 More info
+5/8-24 UNEF-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH717 Push Button Switch Boot PH 717 5/8-24 UNEF-2B 0.281 0.750 H 0.515 0.609 More info
+7/16-28 UNEF-2B


Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
OP716 Push Button Switch Boot OP 716 7/16-28 UNEF-2B N/A 0.625 H 0.205 0.550 More info
+7/16-32 UN-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH716 Push Button Switch Boot PH 716 7/16-32 UN-2B 0.438 0.625 H 0.422 0.719 More info
+7/8-32 UNEF-2B
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
IL100 Push Button Switch Boot IL 100 7/8-32 UNEF-2B 0.475 1.135 D 0.740 0.875 More info
+M12 X 0.75
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH709 Push Button Switch Boot PH 709 M12 X 0.75 0.300 0.625 H 0.390 0.570 More info
+M12 X 1.00
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PH701 Push Button Switch Boot PH 701 M12 X 1.00 0.480 0.625 H 0.390 0.750 More info
+M9 x 0.75
Image Part # Bushing Thread MTHAB (?) A – Hex/Dia T – I.D. H – Height Information
PR731 Push Button Switch Boot PR 731 M9 x 0.75 0.325 0.625 D 0.310 0.616 More info

Push Button Switch Seal Specifications

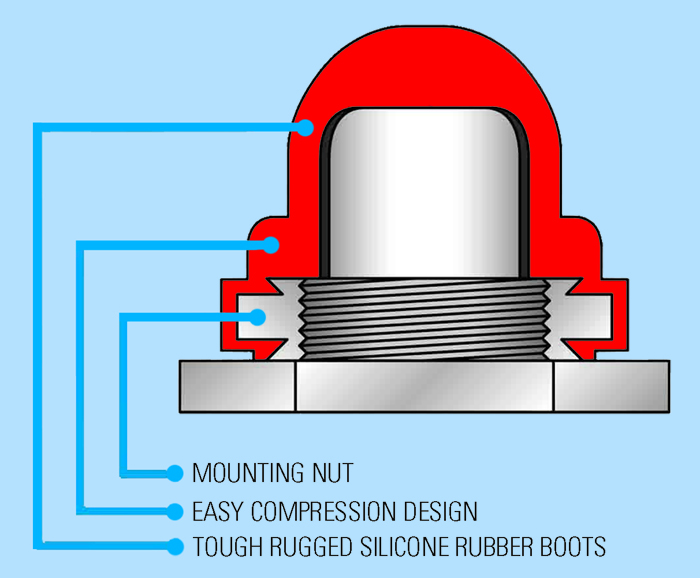

Push Button Switch Seal Specifications Diagram

Push Button Switch Seal Specifications Diagram
